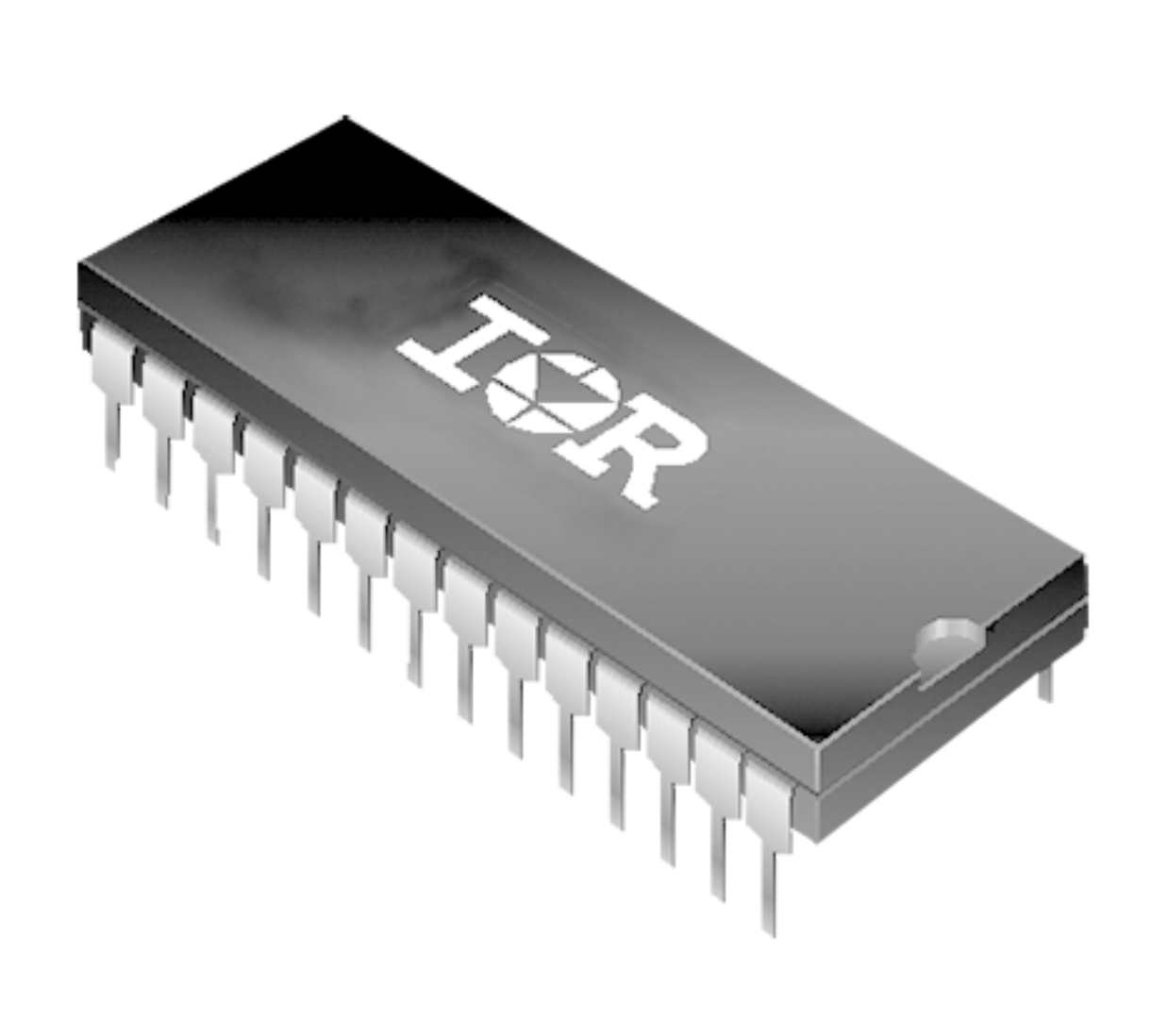

Image is for your reference only,please check specifications for details
- IR2235 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC195921387
-
Package:PDIP-28
-
Datasheet:Datasheet 3D Model
-
Description:1200V Three Phase Driver IC with typical 0.25A source and 0.5A sink currents in 28 Lead PDIP package for IGBTs and MOSFETs. Also available in 44 Lead PLCC and 28 Lead SOICWB.
-
Stock Locations:
-
Availability:265 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 03/05/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Floating channel designed for bootstrap operation
- Fully operational to +1200 V
- Fully operational to +600 V (IR2133 ) option avaialble
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 10 V/12 V to 20 V DC and up to 25 V for transient
- Undervoltage lockout for all channels
- Over-current shut down turns off all six drivers
- Independent 3 half-bridge drivers
- Matched propagation delay for all channels
- 2.5 V logic compatible
- Outputs out of phase with inputs
IR2235 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-28 |
| Rise/Fall Time | 90ns, 40ns |
| Supply Voltage | 10V ~ 20V |
| Show | |
| Operating Temperature | 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
