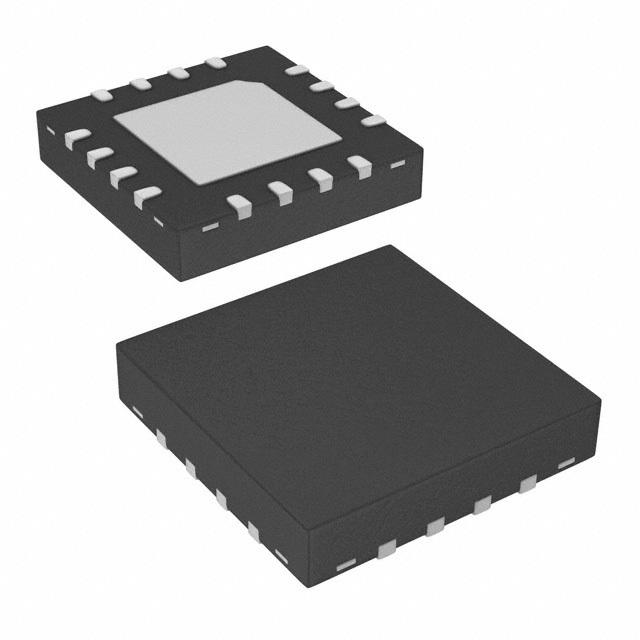

Image is for your reference only,please check specifications for details

ISL8014IRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC116497331
Category:
DC to DC Converter
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.8V to 5.5V 4A 16Pin QFN EP
Stock Locations:
Availability:
633 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ISL8014IRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	4 A
Number of Positions	16 Position
Switching Frequency	1.2 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	800 mV
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
