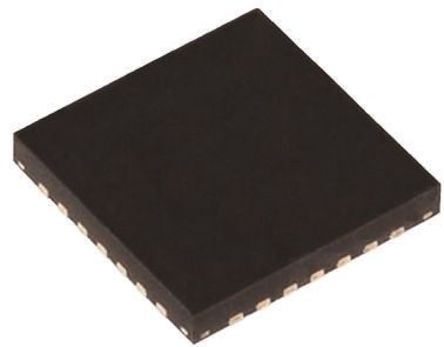

Image is for your reference only,please check specifications for details

ISL85033IRTZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC66312038
Category:
DC to DC Converter
Package:
TQFN-28
Datasheet:
Datasheet 3D Model
Description:
The ISL85033 is a dual standard buck regulator capable of 3A per channel continuous output current. With an input range of 4.5V to 28V, it provides a high frequency power solution for a variety of point of load applications. The ISL85033 is available in a small 4mm x 4mm Thin Quad Flat No-Lead (TQFN) Pb-free package.
Stock Locations:
Availability:
353 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL85033IRTZ is a dual standard Buck Regulator capable of 3A per channel continuous output current. With an input range of 4.5 to 28V, it provides a high frequency power solution for a variety of point of load applications. The PWM controller in the ISL85033 drives an internal switching N-channel power MOSFET and requires an external Schottky diode to generate the output voltage. The integrated power switch is optimized for excellent thermal performance up to 3A of output current. The PWM regulator switches at a default frequency of 500kHz and it can be user programmed or synchronized from 300kHz to 2MHz. The ISL85033 utilizes peak current mode control to provide flexibility in component selection and minimize solution size. The protection features include overcurrent, UVLO and thermal overload protection.
Current mode control
Independent power-good detection
Selectable in-phase or out-of-phase PWM operation
Independent, sequential, ratiometric or absolute tracking between outputs
Internal 2ms soft-start time
Overcurrent/short circuit protection, thermal overload protection, UVLO
Boot undervoltage detection

Show

ISL85033IRTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TQFN-28
Number of Outputs	2 Output
Output Voltage	0.8V ~ 28V
Output Current	3 A
Number of Positions	28 Position
Switching Frequency	2 MHz
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	28 V
Output Voltage (Min)	0.8 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	28 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
