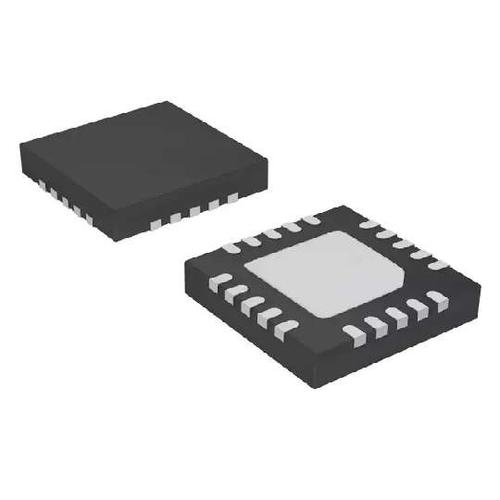

Image is for your reference only,please check specifications for details

ISL95870BHRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC116488748
Category:
Voltage Regulator
Package:
QFN-20
Datasheet:
Datasheet 3D Model
Description:
ISL95870 Series PWM DC-DC Controller with VID In for Portable GPU-20L QFN
Stock Locations:
Availability:
145 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.84

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PWM DC/DC Controller with VID Inputs for Portable GPU Core-Voltage Regulator
The ISL95870, ISL95870A, ISL95870B ICs are Single-Phase Synchronous-Buck PWM regulators
featuring Intersil’s proprietary R4 Technology™. The wide 3.3V to 25V input voltage range is ideal for systems that run on battery or AC-adapter power sources.
Features
• Input Voltage Range: 3.3V to 25V
• Output Voltage Range: 0.5V to 5V
• Precision Regulation
\- Proprietary R4™ Frequency Control Loop
\- ±0.5% System Accuracy Over -10°C to +100°C
• Optimal Transient Response
\- Intersil’s R4™ Modulator Technology
• Output Remote Sense
• Extremely Flexible Output Voltage Programmability
\- 2-Bit VID Selects Four Independent Setpoint Voltages for ISL95870B
\- 2-Bit VID Selects Four Dependent or Three Independent Setpoint Voltages for ISL95870A
\- Simple Resistor Programming of Setpoint Voltages
• Selectable 300kHz, 500kHz, 600kHz or 1MHz PWM Frequency in Continuous Conduction
• Automatic Diode Emulation Mode for Highest Efficiency
• Power-Good Monitor for Soft-Start and Fault Detection
Applications(see page 26)
• Mobile PC Graphical Processing Unit VCC Rail
• Mobile PC I/O Controller Hub (ICH) VCC Rail
• Mobile PC Memory Controller Hub (GMCH) VCC Rail
