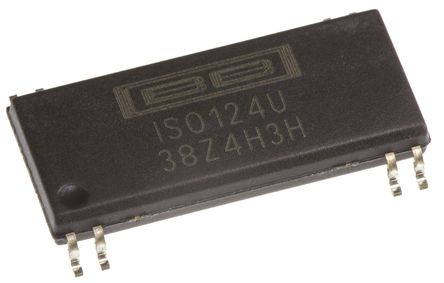

- ISO124U - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1268544
-
Category:Amplifier, Buffer IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Isolation Amplifier, Precision, 1 Amplifier, 50mV, 1.5kV, ± 4.5V to ± 18V, SOIC, 8Pins
-
Stock Locations:
-
Availability:1,966 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 40.46
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISO124U is a Precision Isolation Amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation, the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO124U is easy to use. No external components are required for operation. The key specifications are 0.010% maximum nonlinearity, 50kHz signal bandwidth and 200µV/°C VOS drift. A power supply range of ±4.5V to ±n, 18V and quiescent currents of ±5mA on VS1 and ±5.5mA on VS2 make the ISO124U ideal for a wide range of applications.
- 100% Tested for high-voltage breakdown
- Rated 1500Vrms
- 140dB at 60Hz High IMR
- 0.010% Maximum nonlinearity
- VO = ±10V Bipolar operation
- Ease of use, fixed unity gain configuration
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
ISO124U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 15.0 V |
| Operating Voltage | 4.5V ~ 18V |
| Supply Current | 5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Bandwidth | 50 kHz |
| Slew Rate | 2.00 V/μs |
| Isolation Voltage | 1.5 kV |
| Input Offset Voltage | 50 mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| 3dB Bandwidth | 50 kHz |
| Supply Voltage (Max) | 30V ~ 50V |
| Show | |
| Size-Length | 17.9 mm |
| Size-Width | 7.5 mm |
| Size-Height | 2.3 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
