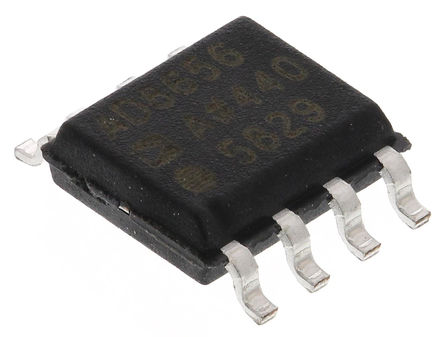

Image is for your reference only,please check specifications for details

AD8656ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC295200
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8656ARZ Operational Amplifier, Dual, 2 Amplifier, 28MHz, 11V/µs, 2.7V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8656ARZ is a Low Noise Precision CMOS Amplifier that leverages the DigiTrim® technology to achieve high DC accuracy. The amplifier provides low noise (2.7nV/√Hz at 10kHz), low THD + N (0.0007%) and high precision performance (250µV max over VCM) to low voltage applications. The ability to swing rail-to-rail at the input and output enables designers to buffer analogue-to-digital converters (ADCs) and other wide dynamic range devices in single-supply systems. The high precision performance of the AD8656 improves the resolution and dynamic range in low voltage applications. Audio applications such as microphone pre-amps and audio mixing consoles, benefit from the low noise, low distortion and high output current capability of the AD8656 to reduce system level noise performance and maintain audio fidelity. The high precision and rail-to-rail input and output of the AD8656 benefit data acquisition, process controls and PLL filter applications.
250µV Maximum offset voltage
2.7nV/√Hz Noise
0.4µV/°C Typical and 2.3µV/°C maximum offset voltage drift
Rail-to-rail input/output
Unity-gain stable
ESD sensitive device, take proper precaution while handling the device.

Show

AD8656ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.50 V
Operating Voltage	2.7V ~ 5.5V
Supply Current	3.7 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	85 dB
Input Capacitance	16.7 pF
Bandwidth	28 MHz
Slew Rate	11.0 V/μs
Gain Bandwidth Product	28 MHz
Input Impedance	1.00 MΩ
Input Offset Voltage	50 µV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	28 MHz
Minimum CMRR Range	85 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
