ISO1H811GAUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC52215356
Category:
Power Distribution
Package:
SOIC-36
Datasheet:
Datasheet 3D Model
Description:

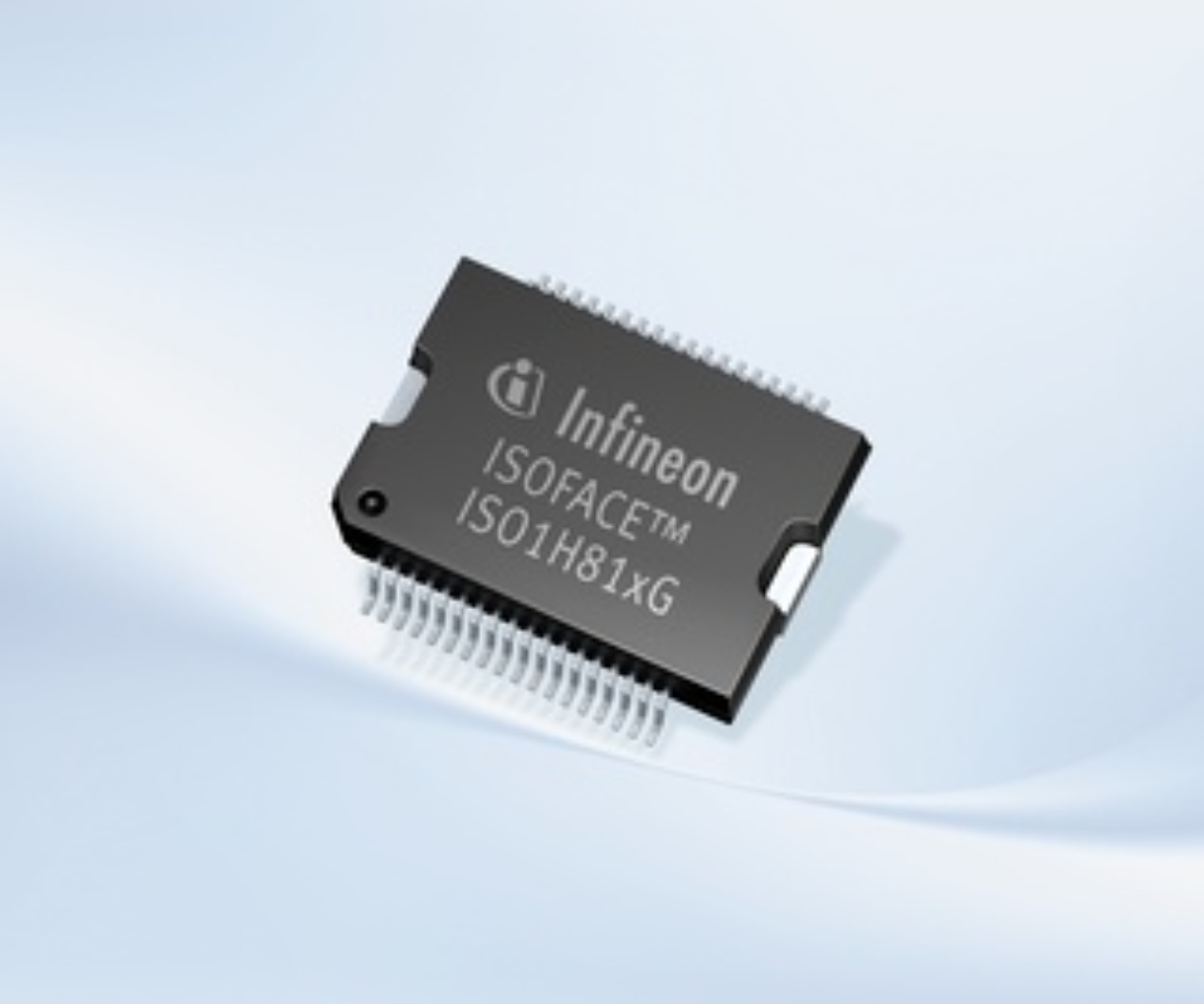

INFINEON ISO1H811GAUMA1 Power Load Switch, Galvanic Isolated, High Side, Active Low, 8Outputs, 5.5V, 0.625A, SOIC-36
Stock Locations:
Availability:
1,282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 33.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO1H811G is a galvanically isolated 8-bit Data Interface provides 8 fully protected high-side Power Switch that can handle currents up to 625mA. An 8 bit parallel µC compatible interface allows connecting the IC directly to a µC system. The input interface supports also a direct control mode and is designed to operate with 3.3/5V CMOS compatible levels. The data transfer from input to output side is realized by the integrated Coreless Transformer Technology.
Parallel interface
Direct control mode
High common mode transient immunity
Short-circuit protection
Maximum current internally limited
Overload protection
Overvoltage protection (including load dump)
Undervoltage shutdown with autorestart and hysteresis
Switching inductive loads
Common output disable pin
Thermal shutdown with restart
Thermal independence of separate channels
Common diagnostic output
Loss of GNDbb and loss of Vbb protection
Reverse output voltage protection
Isolated return path for DIAG signal
Vbb monitoring

Show

ISO1H811GAUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	SOIC-36
Number of Outputs	8 Output
Input Voltage (DC)	5.50 V
Output Current	0.7 A
Supply Current	10 mA
Number of Positions	36 Position
Power Dissipation	3.3 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	3300 mW
Input Voltage	5.5 V
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
