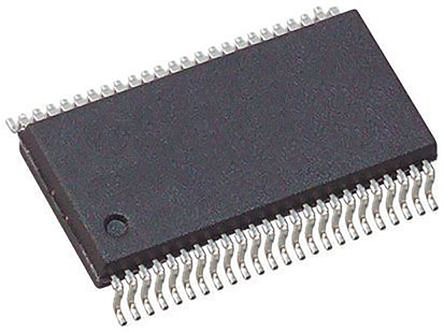

Image is for your reference only,please check specifications for details

ISO1I811T - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC67210440
Category:
Interface Isolator, Digital Isolator
Package:
TSSOP-48
Datasheet:
Datasheet 3D Model
Description:
INFINEON ISO1I811T Power Load Switch, Electrically Isolated, 8Bit, High Side, Active Low, 8Outputs, 5.5V, TSSOP-48
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.85

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO1I811T is an electrically isolated 8 bit Data Input Interface used to detect the signal states of eight independent input lines according to IEC61131-2 Type 1/2/3 (e.g. two-wire proximity switches) with a common ground (GNDFI). For operation in accordance with IEC61131-2, it is necessary for the ISO1I811T to be wired with resistors according to the application diagram. The 8 bit parallel/serial µC compatible interface allows the IC to directly connect to a µC system. The µC interface also supports a direct control mode and is designed to operate with 3.3/5V CMOS compatible levels. The data transfer and isolation from input to output side is realized by the integrated Coreless Transformer Technology.
Robust over operational lifetime
Secure data transfer under very harsh conditions
Complete system integration
8-channel input according to IEC61131-2 (Type 1/2/3)
Integrated galvanic isolation 500VAC (EN60664-1, UL1577)
Adjustable deglitching filters
Up to 125kHz sampling frequency

Show

ISO1I811T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Number of Outputs	8 Output
Input Voltage (DC)	5.50 V
Number of Channels	8 Channel
Number of Positions	48 Position
Power Dissipation	800 mW
Isolation Voltage	500 VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.85V ~ 5.5V
Input Voltage	5.5 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
