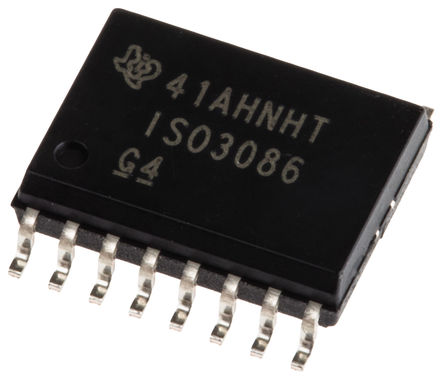

ISO3086DW - TI
Manufacturer:
TI
ManyChip's Part#:
MC18403428
Category:
Interface IC, Interface Controller
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
RS422, RS485 Digital Isolator 2500Vrms 3Channel 20Mbps 25kV/μs CMTI 16-SOIC (0.295", 7.5mm Width)
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.74

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO3086DW is an isolated full-duplex RS-485 differential Line Transceiver ideal for long transmission lines because the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 2500Vrms of isolation for 60s per UL 1577 between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. This noise transient can cause damage to the transceiver and/or nearby sensitive circuitry if they are of sufficient magnitude and duration. This isolated device can significantly increase protection and reduce the risk of damage to expensive control circuits.
Thermal shutdown protection
16pF Typical low bus capacitance
50kV/µs Typical transient immunity
Fail-safe receiver for bus open, short or idle
Meets or exceeds TIA/EIA RS-485 requirements
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

ISO3086DW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.15V (min)
Output Current	8mA, 60mA
Supply Current	15 mA
Number of Channels	3 Channel
Number of Positions	16 Position
Power Dissipation	220 mW
Data Rate	20.0 Mbps
Isolation Voltage	2500 Vrms
Thermal Shutdown	Yes
Drivers Per Package	1
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3.15 V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
