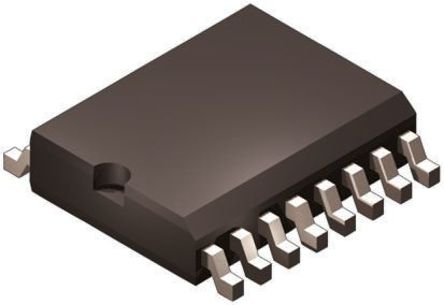

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO7240ADW is a quad-channel Digital Isolator with multiple channel configurations and output enable functions. This device has logic input and output buffers separated by TI"s silicon dioxide (SiO2) isolation barrier. Used in conjunction with isolated power supplies, it blocks high voltage, isolate grounds and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry. The ISO7240A has all four channels in the same direction. It has TTL input thresholds and a noise-filter at the input that prevents transient pulses from being passed to the output of the device. A periodic update pulse is sent across the barrier to ensure the proper dc level of the output. If this dc-refresh pulse is not received, the input is assumed to be unpowered or not being actively driven and the failsafe circuit drives the output to a logic high state.
High electromagnetic immunity (EMI)
4kV ESD Protection
Typical 25-year life at rated working voltage
4000V Peak isolation

Show

ISO7240ADW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.30 V, 5.00 V
Rise/Fall Time	2 ns
Supply Current	1 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	220 mW
Data Rate	1.00 Mbps
Rise Time	2 ns
Isolation Voltage	4000 Vpk
Thermal Shutdown	No
Input Current (Min)	10 μA
Maximum Forward Voltage (Max)	5 V
Fall Time (Max)	2 ns
Fall Time (Max)	2 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	220 mW
Supply Voltage	3.15V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3.15 V
	Show
Size-Length	10.5 mm
Size-Width	2.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
