Description

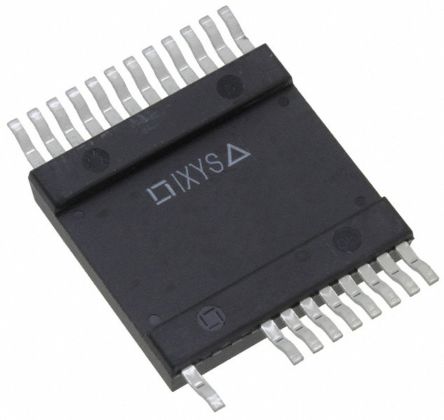

- N-Channel 75V 500A (Tc) 830W (Tc) Surface Mount 24-SMPD
MMIX1F520N075T2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 21 Pin |
| Case/Package | SMPD-24 |
| Number of Channels | 1 Channel |
| Number of Positions | 21 Position |
| Drain to Source Resistance (on) (Rds) | 0.0016 Ω |
| Polarity | N-Channel |
| Power Dissipation | 830 W |
| Threshold Voltage | 5 V |
| Drain to Source Voltage (Vds) | 75 V |
| Breakdown Voltage (Drain to Source) | 75 V |
| Continuous Drain Current (Ids) | 500A |
| Rise Time | 36 ns |
| Input Capacitance (Ciss) | 41000pF @25V(Vds) |
| Input Power (Max) | 830 W |
| Fall Time | 35 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 830W (Tc) |
| Show | |
| Size-Length | 25.25 mm |
| Size-Width | 23.25 mm |
| Size-Height | 5.7 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2016/06/20 |
