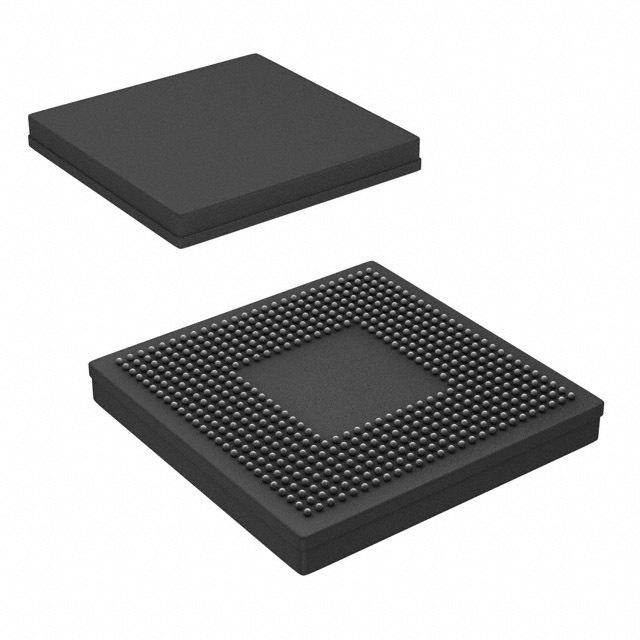

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This TMS32C6414EGLZA5E0 digital signal processor manufactured by Texas Instruments is designed to properly convert analog to digital. This DSP processor has a minimum operating temperature of -40 °C and a maximum of 105 °C. 500 MHz is its maximum speed. This is a 32 bit processor. This device is based on the C64x core architecture. This device has a typical operating supply voltage of 1.25|3.3 V. Its minimum operating supply voltage of 1.19|3.14 V, while its maximum is 1.31|3.46 V. It has romless program memory.

Show

TMS32C6414EGLZA5E0 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	532 Pin
Case/Package	FCBGA-532
Frequency	500 MHz
Supply Voltage (DC)	1.19V (min)
Clock Speed	720 MHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A991.a.2
