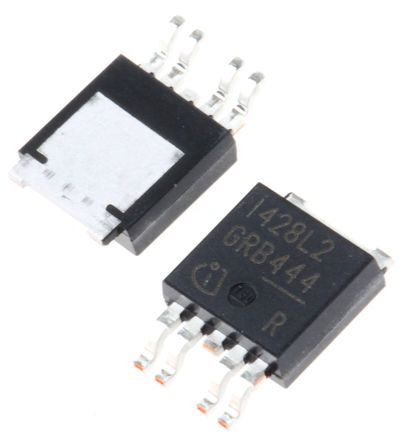

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ITS428L2 is a 1-output high-side vertical power MOSFET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. It provides embedded protection functions and overvoltage protection (including load dump) with external resistor.
Very low standby current
Improved electromagnetic compatibility
Fast demagnetization of inductive loads
Stable behaviour at under-voltage
Wide operating voltage range
Logic ground independent from load ground
Short-circuit protection
Overload protection
Current limitation
Thermal shutdown
Reverse battery protection with external resistor
Loss of ground and loss of VBB protection
ESD sensitive device, take proper precaution while handling the device.

Show

ITS428L2ATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252
Number of Outputs	1 Output
Output Current	5.8 A
Supply Current	0.8 mA
Number of Positions	5 Position
Power Dissipation	75 W
Output Current (Min)	5.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	75000 mW
Input Voltage	41 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	PB free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
