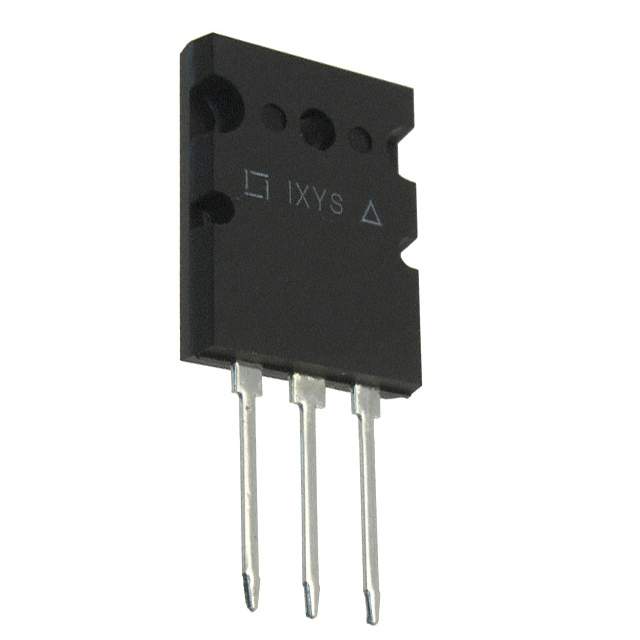

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 800 V 34A (Tc) 560W (Tc) Through Hole TO-264AA (IXFK)
IXFK34N80 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-264-3 |
| Voltage Rating (DC) | 800 V |
| Current Rating | 34.0 A |
| Drain to Source Resistance (on) (Rds) | 240 mΩ |
| Polarity | N-CH |
| Power Dissipation | 560 W |
| Drain to Source Voltage (Vds) | 800 V |
| Continuous Drain Current (Ids) | 34.0 A |
| Rise Time | 45 ns |
| Input Capacitance (Ciss) | 7500pF @25V(Vds) |
| Input Power (Max) | 560 W |
| Fall Time | 40 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 560W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
