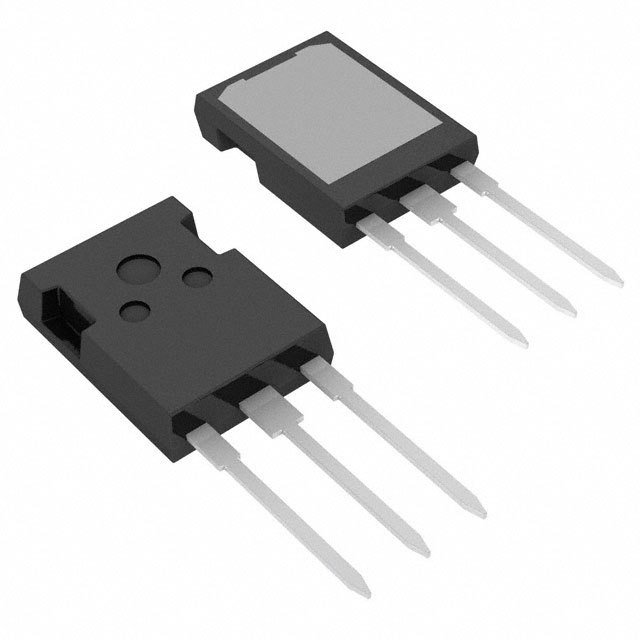

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFX180N10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	100 V
Current Rating	180 A
Drain to Source Resistance (on) (Rds)	8.00 mΩ
Polarity	N-CH
Power Dissipation	560 W
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	180 A
Rise Time	90 ns
Input Capacitance (Ciss)	10900pF @25V(Vds)
Input Power (Max)	560 W
Fall Time	65 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	560W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
