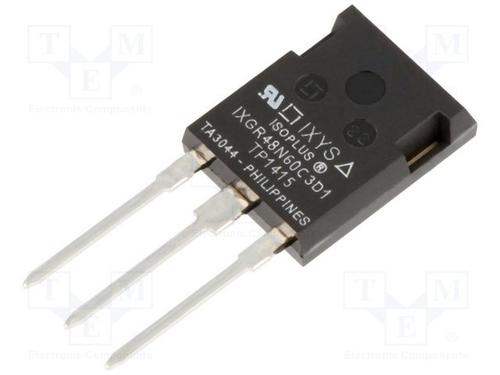

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

IXYS extends its GenX3™ insulated gate bipolar transistor (IGBT) product line to 600 volts. These new IGBTs are manufactured using IXYS’ state-of-the-art GenX3™ IGBT process and utilize IXYS’ advanced Punch-Though (PT) technology, tailored to provide higher surge current capabilities, lower saturation voltages, and lower switching losses.

Show

IXGR48N60C3D1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	ISOPLUS-247
Power Rating	125 W
Power Dissipation	125000 mW
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	25 ns
Input Power (Max)	125 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125000 mW
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.34 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
