Description

IC25 = 32 A
VCES = 2500 V
VCE(sat)= 3.2 V
tf = 250 ns
Features
• High Voltage IGBT
\- substitute for high voltage MOSFETs with significantly lower voltage drop and comparable switching speed
\- substitute for high voltage thyristors with voltage control of turn on & turn off
\- substitute for electromechanical trigger and discharge relays
• ISOPLUS i4-PAC™
high voltage package
\- isolated back surface
\- enlarged creepage towards heatsink
\- enlarged creepage between high voltage pins
\- application friendly pinout
\- high reliability
\- industry standard outline
\- UL registered E72873
Applications
• switched mode power supplies
• DC-DC converters
• resonant converters
• laser generators, x ray generators
• discharge circuits

Show

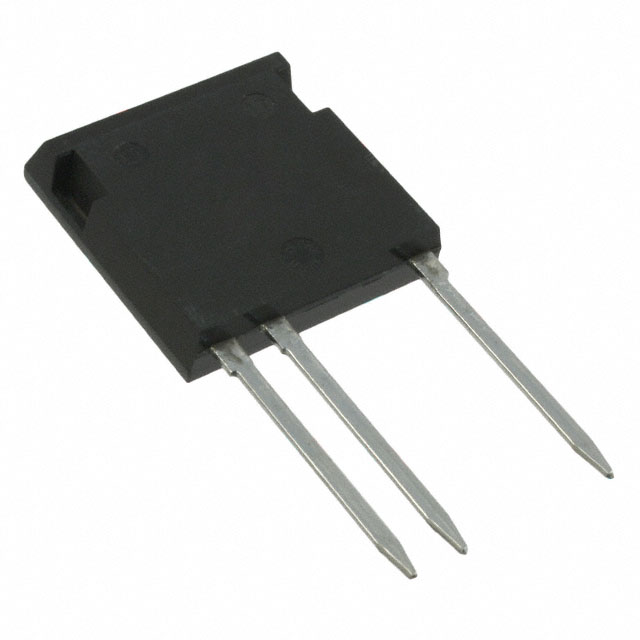

IXLF19N250A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	i4-Pac
Voltage Rating (DC)	2.50 kV
Current Rating	32.0 A
Power Dissipation	250 W
Rise Time	50.0 ns
Breakdown Voltage (Collector to Emitter)	2500 V
Input Power (Max)	250 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250000 mW
	Show
Size-Length	19.91 mm
Size-Width	5.03 mm
Size-Height	20.88 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
