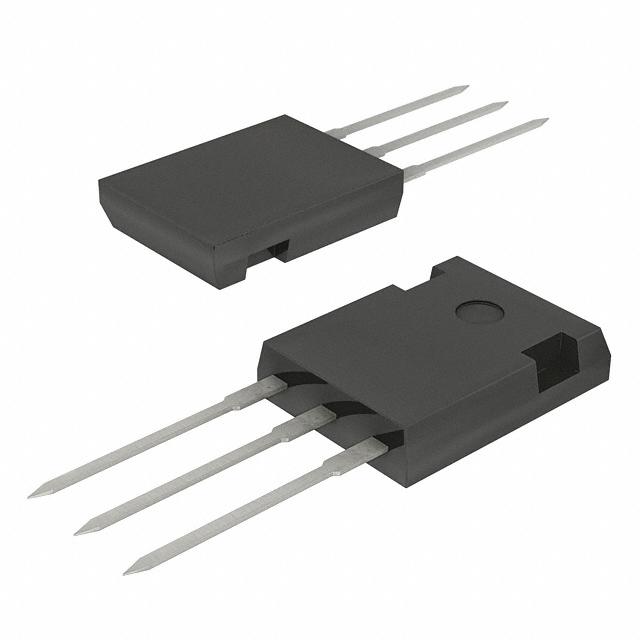

IXTH20N60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	20.0 A
Polarity	N-Channel
Power Dissipation	300 W
Input Capacitance	4.50 nF
Gate Charge	170 nC
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	20.0 A
Rise Time	43 ns
Input Capacitance (Ciss)	4500pF @25V(Vds)
Input Power (Max)	300 W
Fall Time	40 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.46 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
