Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

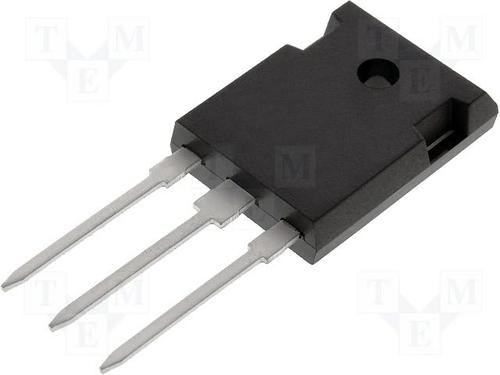

Case/Package | TO-247-3 |
Voltage Rating (DC) | -500 V |
Current Rating | -7.00 A |
Power Rating | 180 W |
Number of Channels | 1 Channel |
Drain to Source Resistance (on) (Rds) | 1.5 Ω |
Polarity | P-CH |
Power Dissipation | 180 W |
Drain to Source Voltage (Vds) | 500 V |
Breakdown Voltage (Drain to Source) | 500 V |
Continuous Drain Current (Ids) | 7.00 A |
Rise Time | 27 ns |
Input Capacitance (Ciss) | 3400pF @25V(Vds) |
Input Power (Max) | 180 W |
Fall Time | 35 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Power Dissipation (Max) | 180W (Tc) |
Show | |
Size-Length | 16.26 mm |
Size-Width | 5.3 mm |
Size-Height | 21.46 mm |
Material | Silicon |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
