Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 4 Pin |

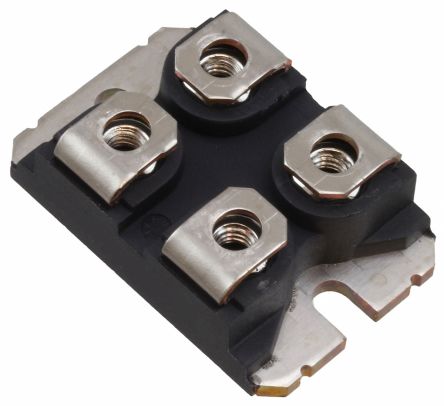

Case/Package | SOT-227-4 |
Drain to Source Resistance (on) (Rds) | 0.03 Ω |
Polarity | N-Channel |
Power Dissipation | 595 W |
Threshold Voltage | 5 V |
Drain to Source Voltage (Vds) | 650 V |
Breakdown Voltage (Drain to Source) | 650 V |
Continuous Drain Current (Ids) | 76A |
Rise Time | 28 ns |
Input Capacitance (Ciss) | 10900pF @25V(Vds) |
Fall Time | 11 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 595W (Tc) |
Show | |
Size-Length | 38.23 mm |
Size-Width | 25.42 mm |
Size-Height | 9.6 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
RoHS | RoHS Compliant |
Lead-Free Status | |
REACH SVHC Compliance Edition | 2016/06/20 |
