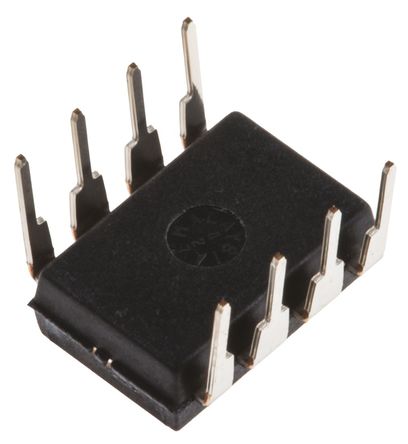

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The INA114BP is a Precision Instrumentation Amplifier offers excellent accuracy. Its versatile 3 op-amp design and small size make it ideal for a wide range of applications. A single external resistor sets any gain from 1 to 10000. Internal input protection can withstand up to ±40V without damage. The INA114 is laser trimmed for very low offset voltage (50µV), drift (0.25µV/°C) and high common-mode rejection (115dB at G=1000). It operates with power supplies as low as ±2.25V, allowing use in battery operated and single 5V supply systems. Quiescent current is 3mA maximum.
- 50µV Maximum low offset voltage
- 0.25µV/°C Maximum low drift
- 2nA Maximum low input bias current
- Green product and no Sb/Br
- ESD sensitive device, take proper precaution while handling the device.
INA114BP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 15.0 V |
| Operating Voltage | 2.25V ~ 18V |
| Supply Current | 2.2 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 120 dB |
| Quiescent Current | 2.20 mA |
| Bandwidth | 1 MHz |
| Slew Rate | 60.0 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Gain | 10.0 kdB |
| Input Offset Voltage | 50 µV |
| Input Bias Current | 500 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 1 MHz |
| Gain Bandwidth | 10 kHz |
| Minimum CMRR Range | 115 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
