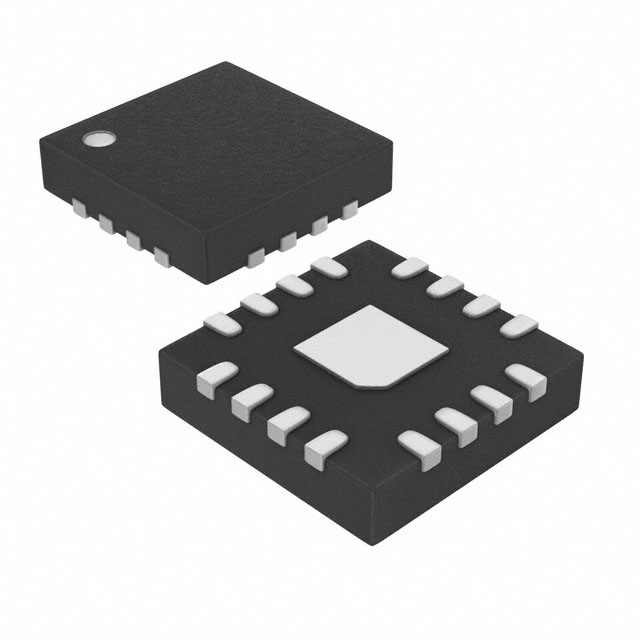

Image is for your reference only,please check specifications for details
- MAX16025TE+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC11645993
-
Category:Power Monitor
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Processor Supervisor 2 Active Low/Open Drain 16Pin TQFN EP
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.95
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX16025TE+ is a dual voltage, capacitor adjustable, sequencing/supervisory circuit in 16 pin TQFN package. It allows fixed and adjustable thresholds to be selected through logic inputs and provide sequence timing through small external capacitors. This device is typically used in wide variety of multivoltage applications where voltage at each monitored input exceeds its threshold, its corresponding output goes high after a propagation delay or a capacitor-set time delay. When a voltage falls below its threshold, its respective output goes low after a propagation delay. The independent output of detector is available with open-drain configuration capable of supporting voltages up to 28V thereby allowing it to interface to shutdown and enable inputs of various DC to DC regulators. It also includes a reset function that deasserts only after all of the independently monitored voltages exceed its threshold. The reset timeout is internally fixed or can be adjusted externally.
- Supply voltage range is 2.2V to 28V
- Operating temperature range from -40°C to 125°C
- Fixed thresholds for 3.3V, 2.5V, 1.8V, 1.5V and 1.2V systems
- 1.5% accurate adjustable threshold monitors voltages down to 0.5V
- 2.7% accurate fixed thresholds over temperature
- Fixed (140ms minimum) / capacitor adjustable delay timing
- Enables input allowing for each monitored voltage
- Manual reset and tolerance select (5%/10%) inputs
- 9 logic selectable threshold options
- Operates as 4 separate supervisory circuit or daisy chain for controlled power supply sequencing
MAX16025TE+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TQFN-16 |
| Supply Voltage (DC) | 2.20V (min) |
| Number of Positions | 16 Position |
| Power Dissipation | 2000 mW |
| Threshold Voltage | 3.052 V |
| Reset Threshold Voltage (Min) | Adjustable |
| Reset Threshold Voltage (Max) | Adjustable |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 28 V |
| Supply Voltage (Min) | 2.2 V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 4 mm |
| Size-Height | 0.73 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
