Description

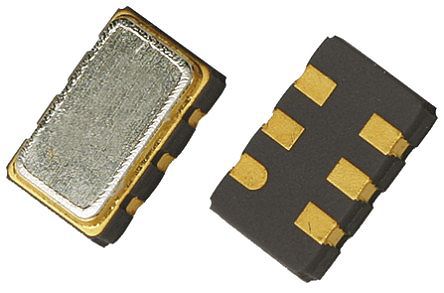

The NBXDPA019LNHTAG is a dual frequency Crystal Oscillator designed to meet today"s requirements for 2.5 and 3.3V LVDS clock generation applications. The device uses a high Q fundamental crystal and phase lock loop (PLL) multiplier to provide selectable 125 or 250MHz, ultra-low jitter and phase noise LVDS differential output. This device is a member of ON Semiconductor"s PureEdge clock family that provides accurate and precision clock solutions.
Halogen-free
LVDS differential output
Uses high Q fundamental mode crystal and PLL multiplier
0.5ps Ultra low jitter and phase noise

Show

NBXDPA019LNHTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	CLCC-6
Frequency	125 MHz
Supply Voltage (DC)	2.97V (min)
Frequency Stability	±50 ppm
Frequency Tolerance	±50 ppm
Voltage Rating (DC)	3.3 V
Halogen Free Status	Halogen Free
Supply Current	78 mA
Number of Positions	6 Position
Duty Cycle	52 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.375V ~ 3.63V
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	2.97 V
	Show
Size-Length	7 mm
Size-Width	5 mm
Size-Height	1.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
