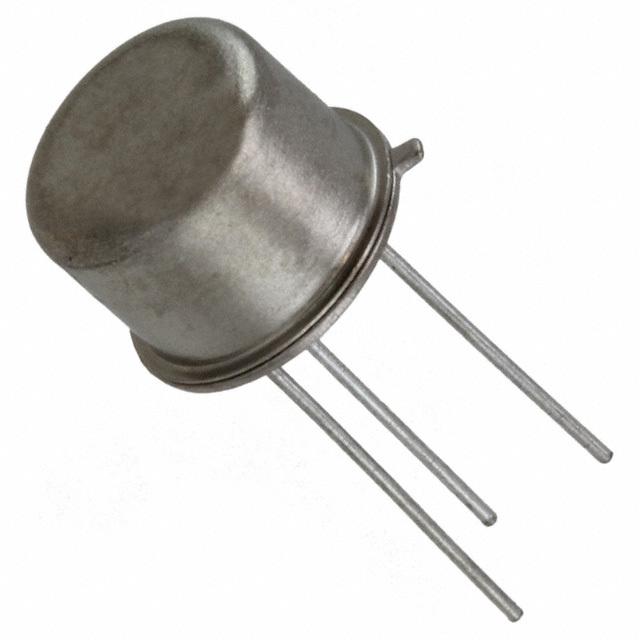

Image is for your reference only,please check specifications for details

JANTX2N3501 - Microsemi
Manufacturer:
Microsemi
ManyChip's Part#:
MC47047493
Category:
BJT Transistor, BJT
Package:
TO-39-3
Datasheet:
Datasheet 3D Model
Description:
JANTX Series 150V 300mA Through Hole NPN Silicon Transistor - TO-39
Stock Locations:
Availability:
1,159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This family of 2N3498 thru 2N3501 epitaxial planar transistors are military qualified up to a JANS level for high-reliability applications. These devices are also available in TO-5 and low profile U4 packaging. Microsemi also offers numerous other transistor products to meet higher and lower power ratings with various switching speed requirements in both through-hole and surface-mount packages.

Show

JANTX2N3501 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	150 V
hFE Min	100 @150mA, 10V
Input Power (Max)	1 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1000 mW
	Show
Material	Silicon
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
