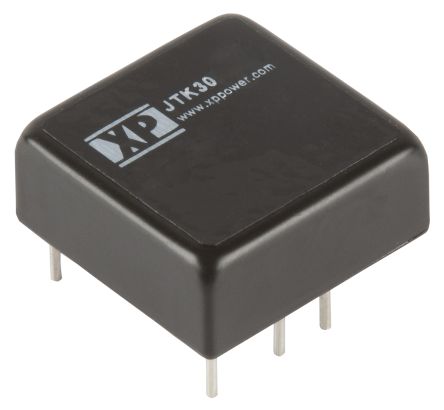

Image is for your reference only,please check specifications for details
- JTK3024S12 - XP Power
-
Manufacturer:XP Power
-
ManyChip's Part#:MC132643858
-
Category:DC to DC Converter, DC/DC Converter
-
Package:DIP-6
-
Datasheet:Datasheet 3D Model
-
Description:XP POWER JTK3024S12 Isolated Board Mount DC-DC Converter, Fixed, Adjustable, 1 Output, 9V, 36V, 30W, 12V
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Single and Dual Outputs
- Wide 4:1 Input Range
- High Power Density, 1" x 1" Package
- Operating Temperature -40°C to 100°C
- 1600VDC Isolation
- Output Trim ±10%
- Remote On/Off
JTK3024S12 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP-6 |
| Power Rating | 30 W |
| Number of Outputs | 1 Output |
| Output Voltage | 12 VDC |
| Output Current | 2.5 A |
| Isolation Voltage | 1.6 kV |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 9 V |
| Input Voltage (DC Max) | 36 V |
| Input Voltage (DC Min) | 9 v |
| Output Current (Max) | 2.5 A |
| Input Current (Min) | 1.405A(Full Load), 10mA(No Load) |
| Input Power (Max) | 30 W |
| Input Voltage | 9VDC ~ 36VDC |
| Show | |
| Size-Length | 25.4 mm |
| Size-Width | 25 mm |
| Size-Height | 10.9 mm |
| Weight | 19 g |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
