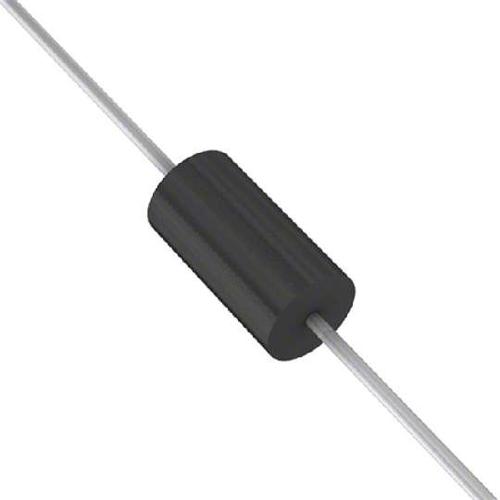

Image is for your reference only,please check specifications for details

K2000G - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC13825783
Category:
Thyristor
Package:
DO-15X-2
Datasheet:
Datasheet 3D Model
Description:
SIDAC, 215V, 1A, DO-15; Breakover Voltage Range: 190V to 215V; Breakover Current Max.: 10μA; Peak Forward Current: 1A...
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The K2000G is a 2-pin Standard Bidirectional SIDAC, silicon bilateral voltage triggered switch. Upon application of a voltage exceeding the SIDAC breakover voltage point, the SIDAC switch on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the device. SIDAC features glass-passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments.
AC circuit oriented
Triggering voltage of 79 to 330V
190 to 215V Voltage rating
5µA Repetitive peak off-state current
10µA Breakover-current
150A/µs Critical rate of rise of on-state current

Show

K2000G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15X-2
Voltage Rating (DC)	215 V
Current Rating	1 A
Number of Positions	2 Position
Forward Voltage	180 V
Holding Current	150 mA
Holding Current (Max)	150 mA
Forward Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
