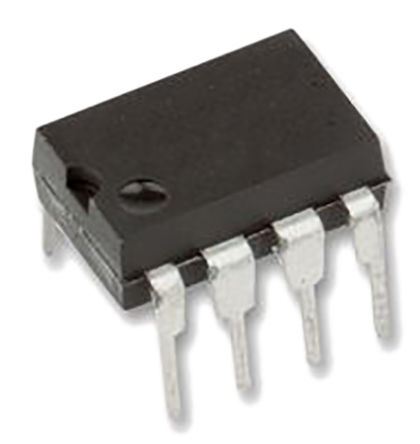

Image is for your reference only,please check specifications for details

KA358A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC38975037
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR KA358A Operational Amplifier, Dual, 2 Amplifier, ± 1.5V to ± 16V, DIP, 8Pins
Stock Locations:
Availability:
9,842 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA358A is a high gain internally frequency compensated dual Operational Amplifier designed specifically to operate from a single power supply over a wide range of voltage. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifier, DC gain blocks and all the conventional op-amp circuits which now can be easily implemented in single power supply systems.
Internally frequency compensated for unity gain
Input common-mode voltage range includes ground
Power drain suitable for battery operation
100dB Large DC voltage gain

Show

KA358A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	5.00 V
Output Current	30mA @5V
Supply Current	800 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	65 dB
Input Offset Voltage	2 mV
Input Bias Current	45 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Minimum CMRR Range	65 dB
Supply Voltage (Max)	32V ~ 36V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.6 mm
Size-Width	6.4 mm
Size-Height	3.4 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
