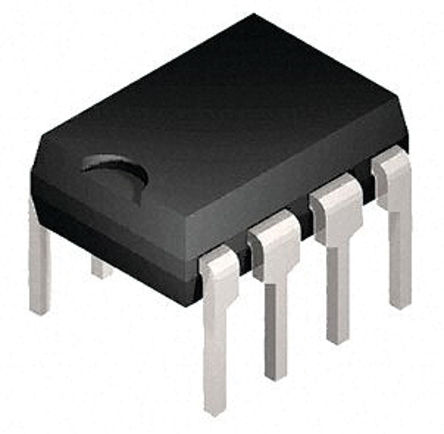

Image is for your reference only,please check specifications for details
- KA7553A - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC114997496
-
Category:DC to DC Converter
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:PMIC - voltage regulators - DC DC switch controllers Fairchild Semiconductor KA7553A DIP 8
-
Stock Locations:
-
Availability:277 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.6
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The KA7552A/KA7553A are switching power control IC for wide operating frequency range. The internal circuits include pulse by pulse current limiting, protection, on/off control by external trigger, low standby current, soft start, and high current totempole output for driving a POWER
- MOSFET. Maximum duty of the KA7552A is 70% and the KA7553A is 46%. When duty is maximum, the input threshold voltage of pin2 & pin8 are not same in KA7552A and KA7553A.
- Features
- • Built-in drive circuits for direct connection power MOSFET (lO = ±1.5A)
- • Wide operating frequency range (5kHz ~ 600kHz)
- • Pulse by pulse over current limiting
- • Over load protection
- • On/off control by external trigger
- • Internal UVLO
- • Low standby current (typ. 90uA)
- • Soft start circuit
KA7553A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.3V ~ 16.5V |
| Output Current | 1.5 A |
| Power Dissipation | 800 mW |
| Switching Frequency | 135 kHz |
| Duty Cycle | 49 % |
| Output Current (Max) | 1.5 A |
| Maximum Duty Cycle | 46 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 800 mW |
| Supply Voltage | 8.7V ~ 30V |
| Input Voltage | 2.6 V |
| Show | |
| Size-Length | 9.6 mm |
| Size-Width | 6.4 mm |
| Size-Height | 3.4 mm |
| Operating Temperature | -25℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
