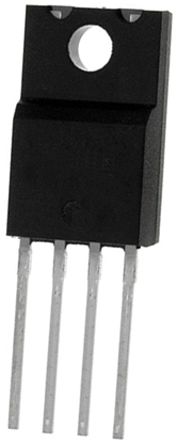

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220F-4
KA78R12CTU Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | TO-220-4 |
| Operating Voltage | 0V ~ 15V |
| Power Rating | 15 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 29.0V (max) |
| Output Voltage | 12 V |
| Output Current | 1 A |
| Power Dissipation | 15000 W |
| Quiescent Current | 10 mA |
| Input Voltage (Max) | 29 V |
| Input Voltage (Min) | 13 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 15000 mW |
| Input Voltage | ≤35 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.5 mm |
| Size-Height | 15.7 mm |
| Operating Temperature | -20℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
