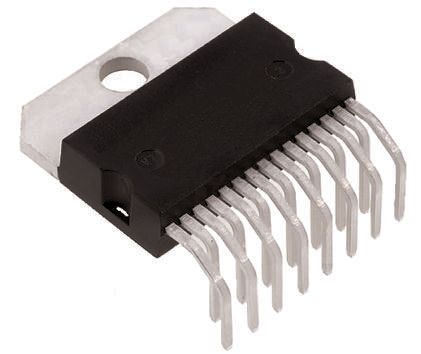

- L296HT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC43572426
-
Category:DC to DC Converter
-
Package:Multiwatt-15
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 9V to 46V Step Down Single-Out 5.1V to 40V 4A 15Pin(15+Tab) MULTIWATT H Tube
-
Stock Locations:
-
Availability:617 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.77
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The L296andL296P are stepdownpower switching regulators delivering 4 A at a voltage variable from 5.1 V to 40 V.
- Featuresof thedevices includesoft start,remotein hibit, thermal protection, a reset output for micro
- processors and a PWM comparator input for synchronization in multichip configurations.
- .4 A OUTPUT CURRENT
- .5.1 V TO 40 V OUTPUT VOLTAGE RANGE
- .0 TO 100 % DUTY CYCLE RANGE
- .PRECISE (±2 %) ON-CHIP REFERENCE
- .SWITCHING FREQUENCY UP TO 200 KHz
- .VERY HIGH EFFICIENCY (UP TO 90 %)
- .VERY FEW EXTERNAL COMPONENTS
- .SOFT START
- .RESET OUTPUT
- .EXTERNAL PROGRAMMABLE LIMITING CURRENT (L296P)
- .CONTROL CIRCUIT FOR CROWBAR SCR
- .INPUT FOR REMOTE INHIBIT AND SYNCHRONUS PWM
- .THERMAL SHUTDOWN
L296HT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Number of Outputs | 1 Output |
| Output Voltage | 5.1V ~ 40V |
| Output Current | 4 A |
| Output Power | 20 W |
| Switching Frequency | 100 kHz |
| Topology | Buck |
| Input Voltage (Max) | 46 V |
| Input Voltage (Min) | 9 V |
| Output Voltage (Max) | 40 V |
| Output Voltage (Min) | 5.1 V |
| Output Current (Max) | 4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 9V ~ 46V |
| Show | |
| Size-Length | 20.2 mm |
| Size-Width | 10.7 mm |
| Size-Height | 5 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
