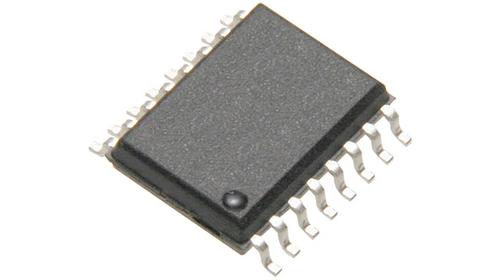

Image is for your reference only,please check specifications for details
- L4976D - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC24415467
-
Category:DC to DC Converter
-
Package:SO-Wide-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 8V to 55V Step Down Single-Out 0.5V to 50V 1A 16Pin SO W Tube
-
Stock Locations:
-
Availability:202 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.26
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 1A 16-SOIC (0.295", 7.50mm Width)
L4976D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SO-Wide-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.5V ~ 50V |
| Output Current | 1 A |
| Number of Positions | 16 Position |
| Power Dissipation | 800 mW |
| Switching Frequency | 100kHz ~ 300kHz |
| Topology | Buck |
| Input Voltage (Max) | 55 V |
| Input Voltage (Min) | 8 V |
| Output Voltage (Max) | 50 V |
| Output Voltage (Min) | 0.5 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 8V ~ 55V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
