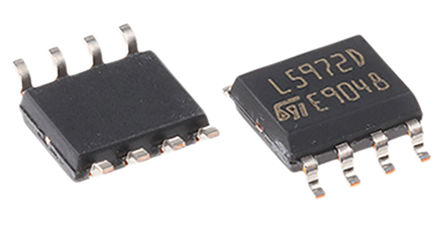

Image is for your reference only,please check specifications for details
- L5972D - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC929142
-
Category:DC to DC Converter
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.4V to 36V Step Down Single-Out 1.235V to 35V 1.5A 8Pin SO N Tube
-
Stock Locations:
-
Availability:774 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L5972D is a step down monolithic Power Switching Regulator with a minimum switch current limit of 2A so it is able to deliver more than 1.5A DC current to the load depending on the application conditions. The device uses an internal P-channel D-MOS transistor (with a typical RDS (ON) of 250mR) as switching element to minimize the size of the external components. Pulse-by-pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
- Voltage feed-forward
- Zero load current operation
- Internal current limiting
- Protection against feedback disconnection
- Thermal shutdown
L5972D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 250 kHz |
| Operating Voltage | 4.4V ~ 36V |
| Power Rating | 1.2 W |
| Number of Outputs | 1 Output |
| Output Voltage | 1.235V ~ 35V |
| Output Current | 2 A |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Quiescent Current | 2.5 mA |
| Switching Frequency | 275 kHz |
| Topology | Buck |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 4.4 V |
| Output Voltage (Max) | 35 V |
| Output Voltage (Min) | 1.235 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.4 V |
| Input Voltage | 36 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.25 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
