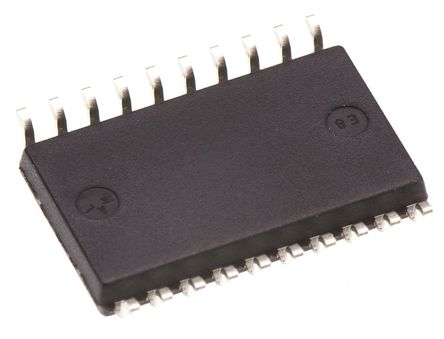

Image is for your reference only,please check specifications for details

L6225D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC8068163
Category:
Motor Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6225D Motor Controller, Dual, DMOS, 8V to 52V supply, 52V/1.4A/2Outputs, SOIC-20
Stock Locations:
Availability:
65 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6225D is a DMOS Dual Full-bridge Driver for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. This device features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.
Non-dissipative over-current protection
Paralleled operation
Cross conduction protection
Integrated fast free wheeling diodes
ESD sensitive device, take proper precaution while handling the device.

Show

L6225D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	52.0V (max)
Number of Outputs	2 Output
Output Voltage	52 V
Output Current	1.4 A
Number of Channels	2 Channel
Number of Positions	20 Position
Rise Time	250 ns
Switching Frequency	100 kHz
Fall Time	250 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-25℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
