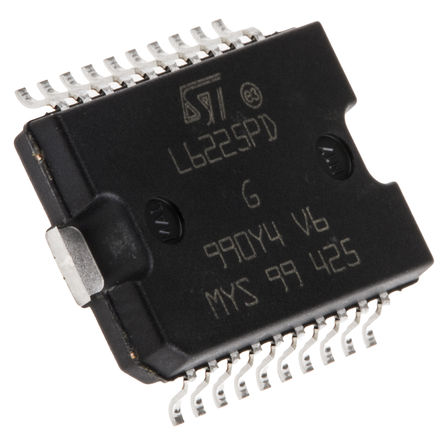

Image is for your reference only,please check specifications for details

L6225PD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC14946289
Category:
Motor Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6225PD Motor Controller, Dual, DMOS, 8V to 52V supply, 52V/1.4A/2Outputs, SOIC-20
Stock Locations:
Availability:
341 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6225PD is a dual DMOS full-bridge Driver realized in MultiPowerBCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. It features a non-dissipative protection of the high-side PowerMOSFETs and thermal shutdown.
Non-dissipative overcurrent protection
Paralleled operation
Cross conduction protection
Thermal shutdown
Under-voltage lockout
Integrated fast free-wheeling diodes
2.8A Output peak current (1.4A DC)
0.73R at Tj=25°C Typical RDS(ON)
Up to 100kHz operating frequency

Show

L6225PD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	52.0V (max)
Number of Outputs	2 Output
Output Voltage	52 V
Output Current	1.4 A
Number of Channels	2 Channel
Number of Positions	20 Position
Switching Frequency	100 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.3 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
