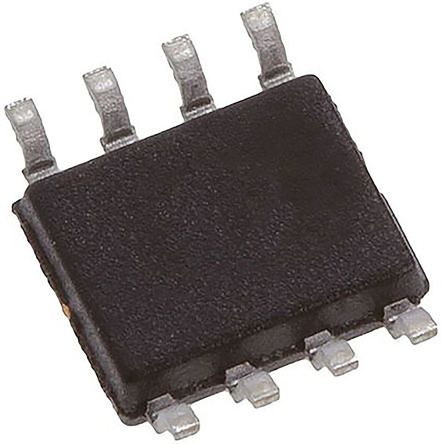

- L6375S - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC12280267
-
Category:FET Driver
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:L6375S Series 35V 0.5A High-Side Driver Intelligent Power Switch - SOIC-8
-
Stock Locations:
-
Availability:127 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.73
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The L6375S is a monolithic Intelligent Power Switch in Multipower BCD Technology, for driving inductive or resistive loads with controlled output voltage slew rate and short circuit protection.
- An internal Clamping Diode enables the fast demagnetization of inductive loads. Diagnostic for CPU feedback and extensive use of electrical protections make this device extremely rugged and specially suitable for industrial automation applications.
- Features
- ■ 0.5A output current
- ■ 8V to 35V supply voltage range
- ■ Internal current limiting
- ■ Thermal shutdown
- ■ Open ground protection
- ■ Internal negative voltage clamping for fast demagnetization
- ■ Differential inputs with large common mode range and threshold hysteresis
- ■ Undervoltage lockout with hysteresis
- ■ Open load detection
- ■ Two diagnostic outputs
- ■ Output status LED driver
- ■ Non dissipative short circuit protection
- ■ Immunity against burst transient(IEC 61000-4-4)
- ■ ESD protection (human body model ±2kV)
L6375S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Operating Voltage | 35.0V (max) |
| Number of Outputs | 1 Output |
| Output Current | 1.5 A |
| Number of Positions | 8 Position |
| Output Current (Max) | 500 mA |
| Output Current (Min) | 0.5 A |
| Number of Inputs | 1 Input |
| Fall Time | 20 µs |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 8V ~ 35V |
| Supply Voltage (Max) | 35 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 24 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.25 mm |
| Operating Temperature | -25℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
