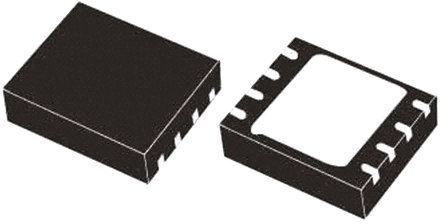

Image is for your reference only,please check specifications for details

ST1S32PUR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC12077107
Category:
DC to DC Converter
Package:
VFDFPN-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.8V to 5.5V Step Down Single-Out 0.8V to 5.5V 4A 8Pin VFDFPN EP
Stock Locations:
Availability:
1,813 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.71

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this step down ST1S32PUR DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 4 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.8 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. By operating at a load regulation of 0.6% and line regulation of 0.3% you can provide a constant voltage at your output. This part offers a switching frequency of 1900 kHz in order to work properly. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.

Show

ST1S32PUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VFDFPN-8
Power Rating	2.25 W
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	4 A
Number of Positions	8 Position
Quiescent Current	1200 µA
Switching Frequency	1.5 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.8 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	800 mV
Output Current (Max)	4 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.8 V
Input Voltage	2.8V ~ 5.5V
	Show
Size-Length	4 mm
Size-Width	4 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
