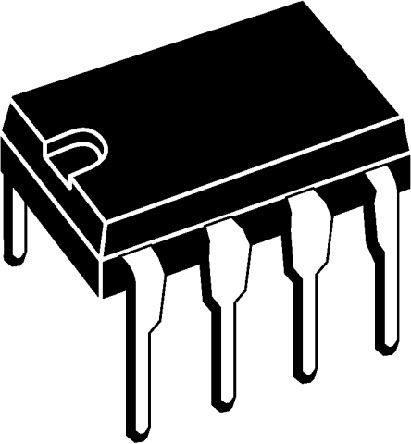

L6385E - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10220907
Category:
FET Driver
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
IGBT/MOSFET Driver, High Side And Low Side, -0.3V to 17V Supply, 650mA Out, 105ns Delay, DIP-8
Stock Locations:
Availability:
600 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6385E is a simple and compact high voltage Gate Driver manufactured with the BCD™ offline technology and able to drive a half-bridge of power MOSFET or IGBT device. The high-side (floating) section is able to work with voltage rail up to 600V. Both device outputs can independently sink and source 650 and 400mA respectively and can be simultaneously driven high. The L6385E device provides two input pins and two output pins and guarantees the outputs toggle in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices. The bootstrap diode is integrated inside the device, allowing a more compact and reliable solution. The L6385E features the UVLO protection on both lower and upper driving sections (VCC and Vboot), ensuring greater protection against voltage drops on the supply lines.
CMOS/TTL Schmitt-trigger inputs with hysteresis and pull-down
Under-voltage lockout on lower and upper driving section
Internal bootstrap diode structure
Outputs in phase with inputs
dV/dt immunity of ±50V/ns in full temperature range
50/30ns Rise/fall with 1nF load switching time

Show

L6385E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	400 kHz
Supply Voltage (DC)	-300 mV (min)
Power Rating	750 mW
Rise/Fall Time	50ns, 30ns
Number of Outputs	2 Output
Output Voltage	580 V
Output Current	400 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	0.75 W
Rise Time	50 ns
Fall Time	30 ns
Fall Time (Max)	30 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-45 ℃
Power Dissipation (Max)	750 mW
Supply Voltage	17 V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	0.3 V
	Show
Size-Length	10.92 mm
Size-Width	6.6 mm
Size-Height	3.32 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
