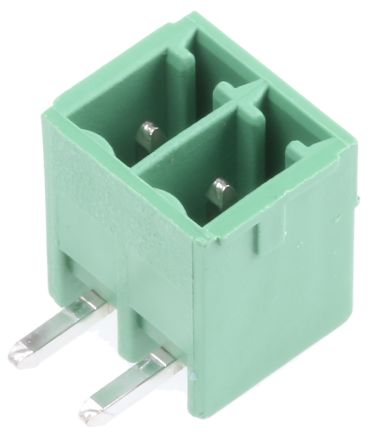

Image is for your reference only,please check specifications for details
- 1844210 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC20796163
-
Category:Terminal Block, Connector Terminal
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Header; 8A; 160V; 3.5; 2; Soldering; 1.2mm; 2.5kV; 250V; PBT; 0.8 x 0.8mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Header, 12 A Nominal Current, 200 V Nominal Voltage, 5.08 mm Pitch, 1.75 mm Dia. Hole
- * The insulation material is PBT
- * Polyamide Insulating Material
- * Voltage: 300 V, Amps: 8 A
- * Operated Under No Load Conditions
1844210 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Pin Pitch | 3.5 mm |
| Number of Contacts | 2 Contact |
| Contact Plating | Tin |
| Voltage Rating (DC) | 250 V |
| Current Rating | 8 A |
| Number of Rows | 1 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Mounting Angle | 90.0 ° |
| Current Rating (Max) | 8 A |
| Voltage Rating (Max) | 160 V |
| Voltage Rating | 300 V |
| Show | |
| Size-Length | 9.2 mm |
| Size-Width | 9.2 mm |
| Size-Height | 7.25 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 100℃ |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
