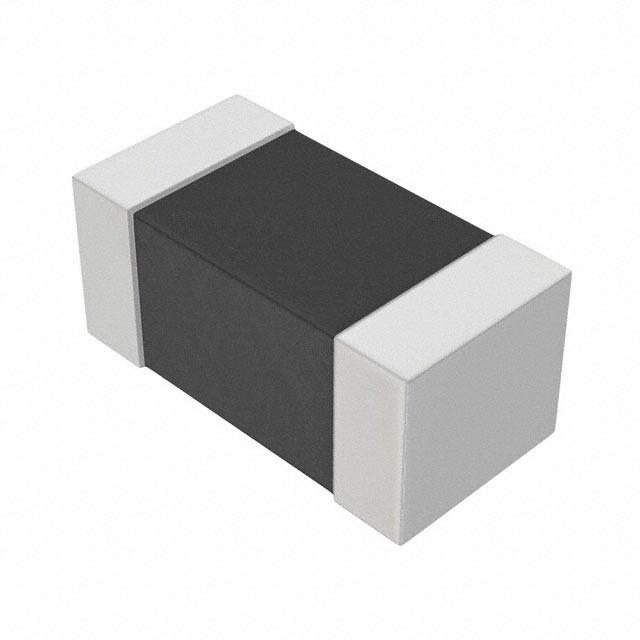

- 2.2µH Shielded Multilayer Inductor 1.05A 250mOhm Max 0603 (1608 Metric)
LQM18PN2R2MGHD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 1.05 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 70 MHz |
| Part Family | LQM |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤250 mΩ |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.25 Ω |
| Show | |
| Size-Length | 1.60 mm |
| Size-Width | 0.80 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status |
