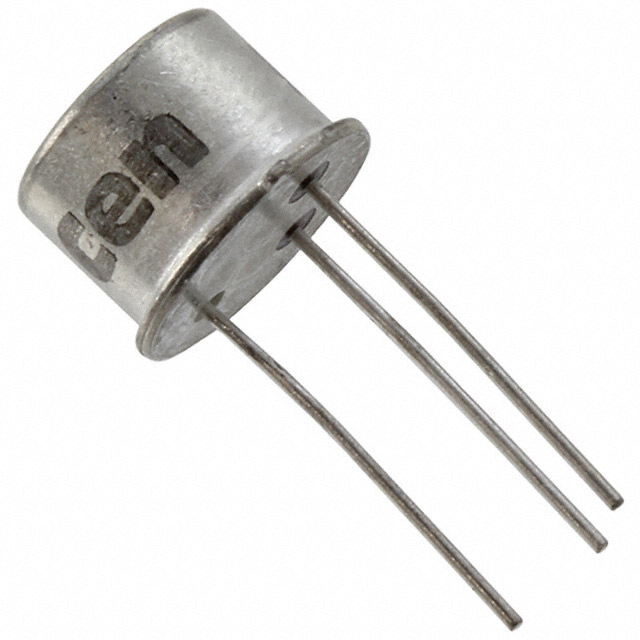

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

2N2405 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Gain Bandwidth Product	50 MHz
Breakdown Voltage (Collector to Emitter)	90 V
hFE Min	60
hFE Max	200
Input Power (Max)	1 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	6.6 mm
Material	Silicon
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
