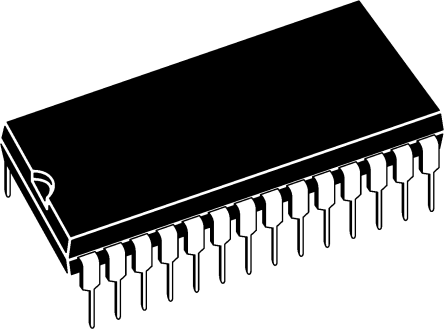

ICM7218AIPI+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC24740634
Category:
LED Driver, LED Display Driver
Package:
PDIP-28
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS ICM7218AIPI+ LED Driver, 2V to 6V input, 8Outputs, 170mA out, DIP-28
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Improved 2nd Source * Fast Access Time: 200ns Write Pulse Width * Microprocessor Compatible * Hexadecimal and Code B Decoders * Individual Segment Control with "No Decode" Feature * Digit and Segment Drivers On-Chip * Common Anode and Common Cathode LEDversions available * Low Power CMOS

Show

ICM7218AIPI+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	5.50V (max)
Number of Outputs	8 Output
Input Voltage (DC)	4.00V ~ 6.00V
Output Current	70.0 mA
Supply Current	250 µA
Number of Positions	28 Position
Number of Bits	8 Bit
Power Dissipation	1 W
Input Voltage (Max)	6 V
Input Voltage (Min)	2 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	1 W
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	4 V
Input Voltage	2V ~ 6V
	Show
Size-Length	37.34 mm
Size-Width	14.61 mm
Size-Height	4.45 mm
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
