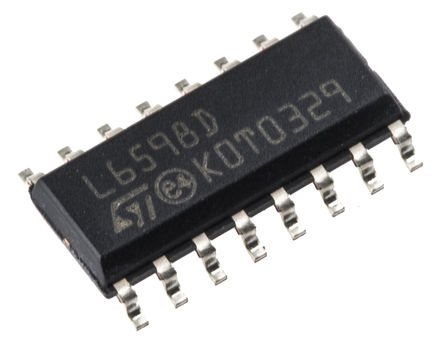

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6598D is a high voltage Resonant Controller. The device is manufactured with the BCD™ offline technology, able to ensure voltage ratings up to 600V and making it perfectly suited for AC/DC adapters and wherever a resonant topology can be beneficial. The device is intended to drive two power MOSFETs, in the classical half-bridge topology. A dedicated timing section allows the designer to set soft-start time, soft-start and minimum frequency. In addition the integrated bootstrap diode and the zener clamping on low voltage supply, reduces to a minimum the external parts needed in the applications.
dV/dt Immunity ±50V/ns in full temperature range
Switching times 80/40ns rise/fall with 1nF load
CMOS shutdown input
Under-voltage lockout
Soft-start frequency shifting timing
Sense op amp for closed loop control or protection
High accuracy current controlled oscillator
Integrated bootstrap diode
Clamping on Vs
ESD sensitive device, take proper precaution while handling the device.

Show

L6598D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	10.0V (min)
Number of Outputs	2 Output
Output Voltage	618 V
Output Current	250.450 mA
Breakdown Voltage	600 V
Number of Channels	2 Channel
Number of Positions	16 Position
Switching Frequency	400 kHz
Thermal Resistance	120 ℃/W
Duty Cycle	50 %
Maximum Duty Cycle	52 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10.16.6 V
Supply Voltage (Max)	16.6 V
Supply Voltage (Min)	10 V
Input Voltage	8V ~ 16.6V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.64 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
