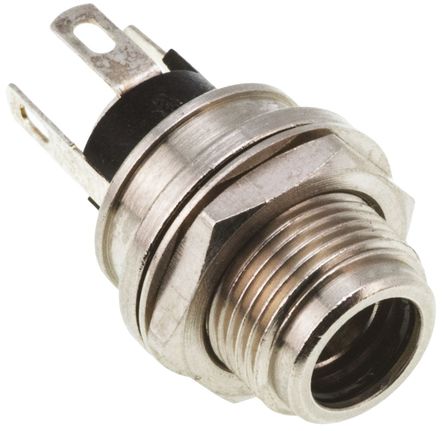

Image is for your reference only,please check specifications for details

L712AS - Switchcraft / Conxall
Manufacturer:
Switchcraft / Conxall
ManyChip's Part#:
MC1814080
Category:
Connector, Adapter
Datasheet:
Datasheet 3D Model
Description:
SWITCHCRAFT L712AS DC Power Connector, Jack, 5A, 2.5mm, Panel Mount, 2.5mm
Stock Locations:
Availability:
1,813 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L712AS from Switchcraft is a sealed DC power jack with 2.5mm diameter pin and solder lugs termination. This version has threaded bushings to allow use of both standard and locking power plugs. It mates with 761KS12, 761KS15, 761KS127 power plugs.
Current rating is 5A up to 30VDC at 65˚C
Initial contact resistance is 10mohm
Maximum dielectric withstanding voltage is 500VAC
IP66, IP67, IP68 / NEMA 250 (6P) when mated
Automatic switch over from AC to DC permitted by sleeve shunt spring
Split centre pin shaped to hold mating plug firmly
Operating temperature range is -20°C to 65°C
Rigid thermoplastic housing and insulator
Plated copper alloy with assembled & lubricated o-ring bushing

Show

L712AS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder, Panel
Number of Contacts	3 Contact
Gender	Male
Voltage Rating (DC)	30.0 V
Current Rating	5 A
Voltage Rating	30 V
	Show
Size-Length	26.3 mm
Color	Silver
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
