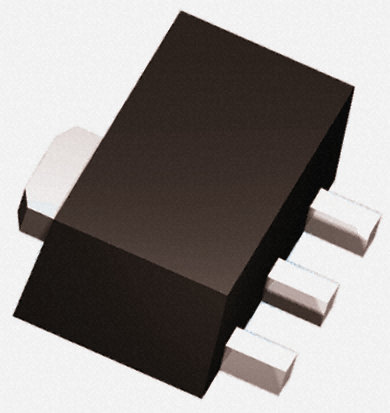

Image is for your reference only,please check specifications for details

L79L05ABUTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3362919
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L79L05ABUTR Linear Voltage Regulator, 7905, Fixed, -20V To -8V In, -5V And 0.1A Out, SOT-89-3
Stock Locations:
Availability:
1,495 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The L79Lxx series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current.
Features
■ Output current up to 100 mA
■ Output voltages of -5; -6; -8; -9; -12; -15V
■ Thermal overload protection
■ Short circuit protection
■ No external components are required
■ Available in either ±5% (AC) or ±10% (C) selection

Show

L79L05ABUTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Number of Outputs	1 Output
Input Voltage (DC)	-20.0 V (max)
Output Current	100 mA
Supply Current	5.5mA ~ 6mA
Number of Positions	3 Position
Quiescent Current	6 mA
voltage rating	1.7V @40mA
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
