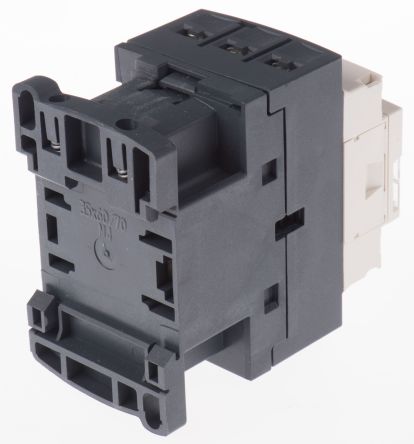

Image is for your reference only,please check specifications for details

LC1D09V7 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC207432438
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC / TELEMECANIQUE LC1D09V7 Contactor, 400VAC, 3Pole, DPDT, DIN Rail, 20A, 400V
Stock Locations:
Availability:
7 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 64.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LC1D09V7 is a 3-pole TeSys D Contactor with AC coil. 3NO power pole contact composition. 1NO-1NC auxiliary contact composition. With safety cover. Without built-in suppressor module. Type mirror contact (1NC) conforming to IEC 60947-4-1, type mechanically linked (1NO-1NC) conforming to IEC 60947-5-1. TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.
Motor control resistive load contactor application
0.2W AC-3, 1.56W AC-1 Power dissipation

Show

LC1D09V7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Operating Voltage	400 VAC
Power Rating	4 kW
Contact Current Rating	9 A
Coil Voltage	400 VAC
Coil Voltage (AC)	400 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	Show
Size-Length	77 mm
Size-Width	45 mm
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
