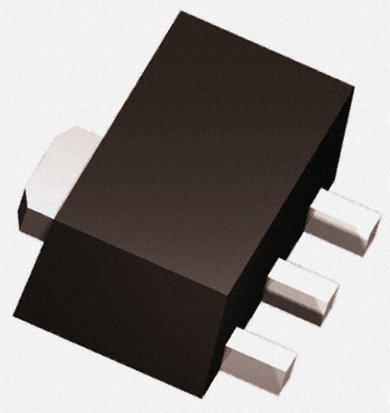

Image is for your reference only,please check specifications for details

LD2981ABU50TR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9739617
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LD2981ABU50TR Fixed LDO Voltage Regulator, 2.5V to 16V, 180mV Dropout, 5Vout, 100mAout, SOT-89-3
Stock Locations:
Availability:
1,704 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.74

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LD2981ABU50TR is a 5V fixed output low-dropout (LDO) Linear Regulator with ultra-low quiescent current make them suitable for low noise, low power applications and in battery powered systems. The quiescent current in sleep mode is less than 1µA when INHIBIT pin is pulled low. Shutdown logic control function is available on pin no 3 (TTL compatible). This means that when the device is used as local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. The device is designed to work with low ESR ceramic capacitor.
Logic-controlled electronic shutdown
Internal current and thermal limit
±0.75% Tolerance output voltage
160µVrms Output low noise voltage
Fast dynamic response to line and load changes

Show

LD2981ABU50TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Number of Outputs	1 Output
Input Voltage (DC)	16.0V (max)
Output Voltage	5 V
Output Current	100 mA
Supply Current	150µA ~ 2.6mA
Number of Positions	3 Position
Quiescent Current	0.08 mA
voltage rating	180 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	2.5 V
Output Voltage (Min)	5 V
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.75 %
Input Voltage	16 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
