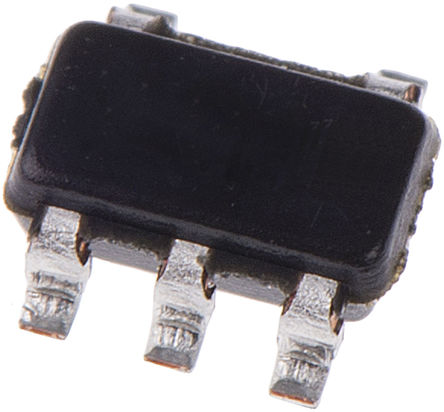

LDCL015MR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC12830131
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LDCL015MR LDO Voltage Regulator, Adjustable, 1.8V to 5.5V in, 50mV drop, 800mV, 150mA out, SOT-23-5
Stock Locations:
Availability:
11 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LDCL015MR is an ultra low-drop Linear Regulator IC provides 150mA of maximum current from an input voltage ranging from 1.8 to 5.5V with a typical dropout voltage of 50mV. It is stable with no input or output capacitor. Low quiescent current, low noise and capless operation make it suitable for low power battery-powered applications and allows the reduction of board size. Typical power supply rejection ratio is 52dB at low frequencies and starts to roll off at 10kHz. The enable logic control function puts the LDCL015 in shutdown mode, reducing the total current consumption to less than 1µA. The device also includes short-circuit constant current limit and thermal protection.
Low noise
No input/output capacitor required
Internal current and thermal limit
±2% Output voltage accuracy
±3% Output voltage tolerance over temperature

Show

LDCL015MR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	150 mA
Number of Positions	5 Position
Quiescent Current	160 µA
voltage rating	50 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	800 mV
Output Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	1.8V ~ 5.5V
	Show
Size-Length	2.95 mm
Size-Width	1.6 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
