LDFPUR ST Microelectronics - Voltage Regulator

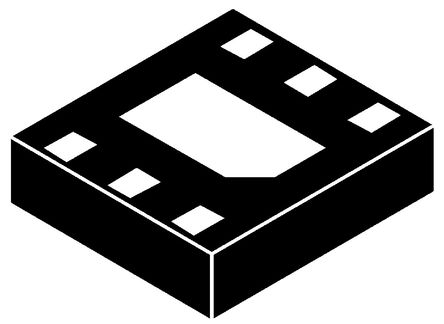

Image is for your reference only,please check specifications for details

LDFPUR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC49690596
Category:
Voltage Regulator
Package:
DFN-6
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LDFPUR Линейный стабилизатор напряжения, регулируемый, вход 2.6В до 16В, падение 200мВ, выход 800мВ до 12В/1А, корпус DFN-6
Stock Locations:
Availability:
1,629 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.17

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LDFPUR — это быстрый линейный стабилизатор с очень низким падением напряжения, работающий от входного напряжения питания в диапазоне от 2,6 до 16 В. Особенности LDF: высокая точность выходного напряжения, низкий уровень шума и малый ток покоя, что делает его подходящим для низковольтных микропроцессоров и приложений с памятью.
Предусмотрены защита по току и тепловая защита
Логически управляемое электронное отключение
Быстрый динамический отклик на изменения линии и нагрузки

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DFN-6
Number of Outputs	1 Output
Output Voltage	0.8V ~ 12V
Output Current	1 A
Number of Positions	6 Position
Quiescent Current	800 µA
voltage rating	200 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	2.6 V
Output Voltage (Max)	12 V
Output Voltage (Min)	800 mV
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.6V ~ 16V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
