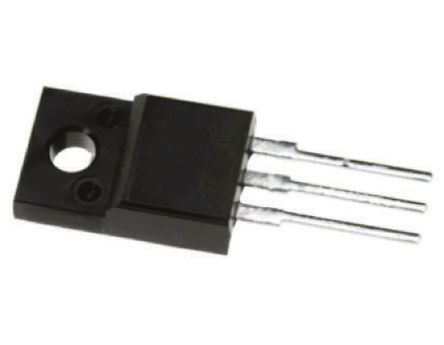

Image is for your reference only,please check specifications for details

LF50ABP - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC22391138
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LF50ABP Fixed LDO Voltage Regulator, 3V to 16V, 400mV Dropout, 5Vout, 0.5Aout, TO-220-3
Stock Locations:
Availability:
328 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LF50ABP is a 5V fixed output very low-dropout (LDO) Linear Regulator. The low drop voltage (0.45V) and low quiescent current make it particularly suitable for low-noise, low power applications and especially in battery powered systems. The device requires a capacitor of only 2.2µF for stability, saving board space.
Internal current and thermal limit
80dB Supply voltage rejection (typical)
±1% at 25°C Accuracy

Show

LF50ABP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Operating Voltage	6V ~ 16V
Number of Outputs	1 Output
Input Voltage (DC)	16.0V (max)
Output Voltage	5 V
Output Current	500 mA
Supply Current	1mA ~ 12mA
Number of Positions	3 Position
Quiescent Current	0.5 mA
voltage rating	400 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	3 V
Output Voltage (Min)	5 V
Output Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	16 V
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
