Description
- **Description**
- The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
- Application areas include transducer amplifiers, dc gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard 3.3-V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies. The LM358 and LM2904 are available in a chip sized package (8-Bump DSBGA) using TI"s DSBGA package technology.

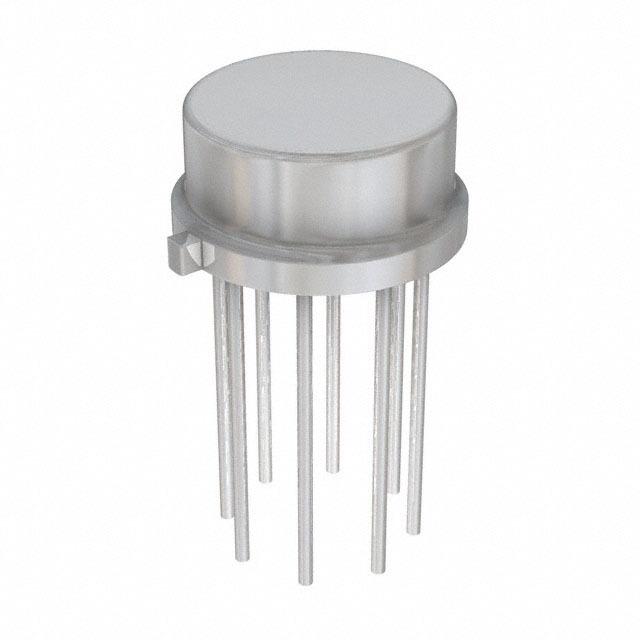

LM158AH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-99-8 |
| Output Current | 40mA @15V |
| Supply Current | 1 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 0.55 W |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 7.00 µV/K |
| Slew Rate | 500 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 50 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 550 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 32 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
